Skilhunt EC200S-UV 2100 lumens 365nm beam EDC Flashlight

The Skilhunt EC200S-UV flashlight is a versatile and powerful illumination tool designed to meet the diverse needs of outdoor enthusiasts, professionals, and everyday users. With its compact size, USB-C rechargeable battery, and dual-channel design, the EC200S-UV is an ideal companion for a wide range of activities, from camping and hiking to everyday carry needs.

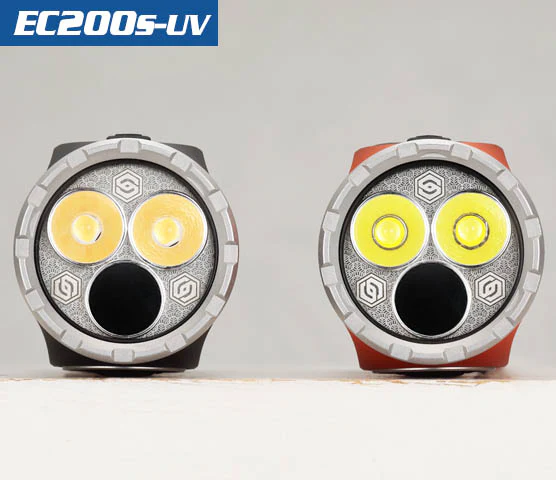

Featuring a combination of CREE XP-G4 Cool White and Nichia 519A Neutral White LEDs, along with a 66A1B UV 365nm LED, the EC200S-UV offers a maximum output of 2100 lumens for the white beam and 1000mW for the UV beam. This dual-channel design provides versatility for various tasks, from illuminating dark environments to detecting fluorescent materials.

The EC200S-UV is powered by a single 18650 battery (not included), with a recommended minimum discharge current of ≥8A. The flashlight is compatible with batteries within the range of 2.7V to 4.2V, ensuring optimal performance and longevity for your flashlight. With its IPX-8 waterproof rating and impact resistance of up to 1 meter, the EC200S-UV is built to withstand the rigors of outdoor use.

The flashlight features a user-friendly interface with a side switch button for mode selection. It offers multiple brightness levels and modes, including a programmable variety of brightness options to suit your specific needs. The automatic memory function remembers the last used setting and can be preset to a specific output mode for instant access.

For added convenience, the EC200S-UV is equipped with a universal USB-C charging port, allowing for easy recharging from any compatible power source. The flashlight also features a two-color indicator of real-time battery power, ensuring you always know the remaining battery life.

Safety features such as reverse polarity protection and a lock-out function help prevent accidental damage to the flashlight and ensure safe use. The location indicator helps you easily find the flashlight in the dark, while the magnetic tail stand and double-sided pocket clip offer versatile carrying options.

The EC200S-UV also boasts a rugged and durable construction, with an indestructible aluminum body featuring anti-scratching type III hard anodization. The flashlight's multi-level dissipating heat design and copper starboard ensure excellent heat dissipation, while the TIR lens provides a soft and balanced beam for optimal visibility.

Overall, the Skilhunt EC200S-UV flashlight is a reliable and versatile lighting solution for a wide range of applications. With its powerful output, convenient features, and durable construction, it's an essential tool for anyone who requires reliable illumination in any situation.

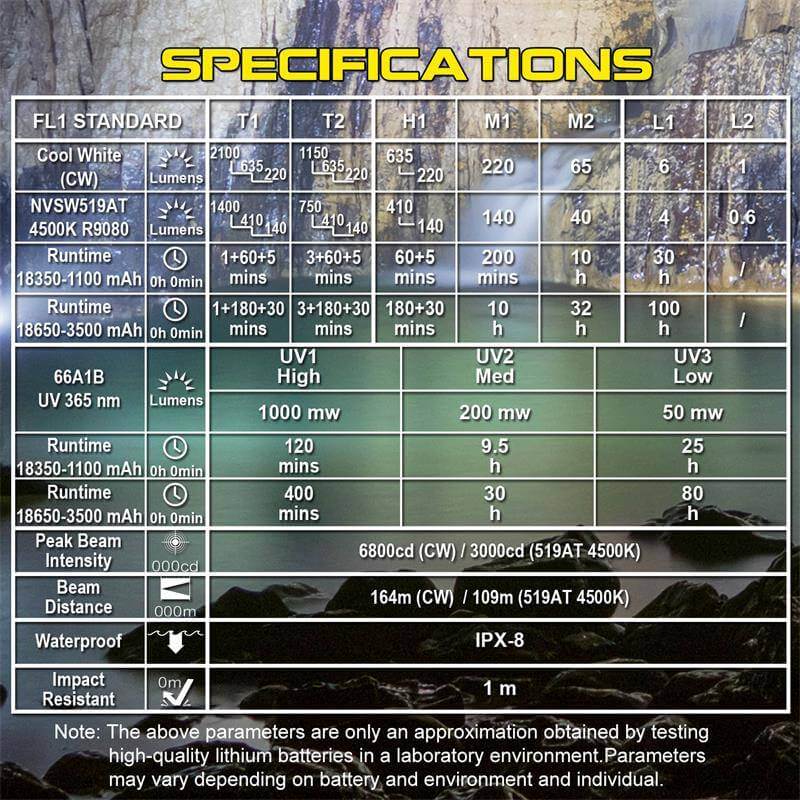

LED:
2 x CREE XP-G4 Cool White 6500K + 1 x 66A1B UV 365 nm
2 x Nichia 519A Neutral White High CRI R9080 4500K + 1 x 66A1B UV 365 nm

Max output:
CREE Cool White ANSI 2100 Lumens + UV365 1000mW
Nichia Neutral White 4500K ANSI 1400 Lumens + UV365 1000mW
Quiescent Current (μA) : 55
Waterproof: IPX-8
Impact resistant: 1 Meter
Battery: 1×18650
Rated range: 2.7-4.2V, (Recommended 18650 battery that max discharge current ≥8A)
Dimension: L102.0 mm / 4.02″, Head diameter 25.0mm / 0.98 “.
Weight: 48.5g / 1.71 oz (Excluded battery)
Accessories: USB-C Charging Cable, Clip, Lanyard, Spare O-rings, User manual.

How to use
1. ON/OFF
Press the button once to turn the light on and off. When the light is turned off, it will memorized current brightness level or mode.
2. CHANGE BRIGHTNESS LEVEL
Note: C = Click (press and release quickly), H = Hold (press and hold)

From OFF:
1C: Activates

(H-M1-M2).
2C: Activates (T1/T2).
3C: Activates (S1/S2/S3).
4C: Activates (This stops the light from turning on accidentally).
H(0.5S): Hold the button for 0.5 seconds to enter into (L1/L2).
H(2S): Hold the button for 2 seconds to enter into (UV1/UV2/UV3).
1C&H:Activates (UV1/UV2/UV3).
From ON

, , ,
Press and hold the switch to automatically cycle, the level is selected when the side switch has been released, turn off memorized.
From

2C: Enter into , repeat operation to returns to

.
3C: Enter into , repeat operation to returns to

.
1C&H: Enter into , repeat operation to returns to

.
From
2C: Quickly double clicks switch tranfer S1-S2-S3, turn off memorized.
From
2C: Enter into , repeat operation to returns to .
1C&H: Enter into

, repeat operation to returns to .
3.LOCK-OUT FUNCTION & LOCATION INDICATOR
When the flashlight is off , quickly click switch 4 times to access the button lockout mode
(location indicator activation at same time,the indicator light flash every 2 seconds.
Double clicks can turn on/off the indicator). Quickly click switch 4 times,the button unlock and activate Low mode.
4. LOW VOLTAGE INDICATOR
When the battery voltage drops below 3.0V, the indicator flashes twice every 2 seconds,the light fast flash every 2 Minute at same time.
When the battery voltage drops below 2.7V, the light will turn off.
Charging
Connect the USB charging cable to an external USB power source, then attach the other end of the cable to the charging port of the light
(Recommeded USB power no less than 10W (5V 2A) )
The red indicator means charging, when the battery charging completed, change to blue indicator.

NOTE:
Rechargeable function only for one 18650 (3.6V / 3.7V) rechargeable lithium battery!
When the battery is incorrectly insert the light,charging may damage the battery.
Power indicator
Every time turn on , the side indicator will be light 5 seconds to display the battery power.
Constant Blue Indicator: 100%~80% ,
Blinks Blue Indicator: 80%~50% ,
Constant Red Indicator: 50%~20% ,
Blinks Red Indicator: 20%~0.
Battery installation
Please make sure that the positive pole of the battery points to the head of the flashlight
when you replace the battery.

Caution:
Please do not point the lighted flashlight to the eyes of people or animals.
Please do not cover the light head when the flashlight is on, or place the flashlight head
on the ground. The radiation energy of the flashlight may cause damage to the flashlight
itself, or even result in burning to other materials.
Please do not use the turbo mode continuously when the environmental temperature is
high in case the flashlight body is too hot to hold.
Please do not put the light with magnetic items such as bank cards and mobile phones.

Features:
– A white beam 2100 lumens + UV 365nm 1000mW Dual Channel powerful EDC 18650 flashlight.
– Universal USB-C charging port.
– Customized user interface,Programmable variety of brightness
– High brightness white beam plus UV 365nm 1000mW beam.
– Ultra efficiency circuit design.
– TIR Lens, soft and balanced beam.
– Two-colors indicator of real-time battery power
– Rugged indestructible aluminum body with anti-scratching type III hard anodization
– Multi-level dissipating heat design and copper starboard, excellent heat dissipation. Flashlight head integrated construction, high thermal conductivity.
– Side switch button to transferring mode, user-friendly interface to adjust output.
– High efficiency driver circuit, no visible flash in any mode.
– Automatic memory function, remember last used setting and can be peset to specific output mode for instant access.
– Intelligent temperature control technology for flashlight stable and safe use.
– Reverse polarity protection, to protect from improper battery installation.
– Lock-out function. Avoids light turn on by unexpected.
– Location indicator help easy to find the light in dark.
– Magnetic tail stand
– Double sides pocket clip.
