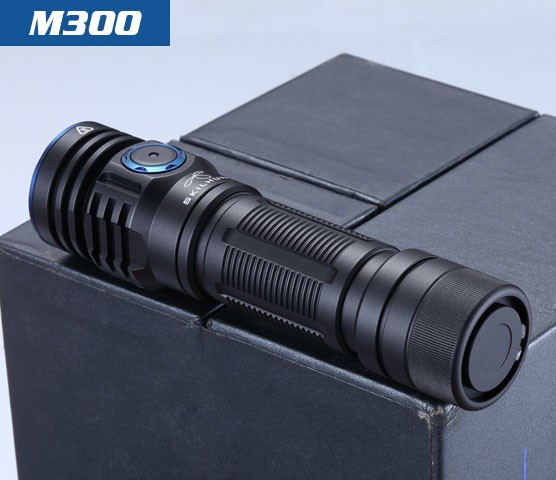

SKILHUNT M300 XHP35 2000 Lumens USB Magnetic Rechargeable flashlight

M300 XHP35 2000 Lumens EDC Edition LED Flashlight

LED: CREE XHP35 HD / HI

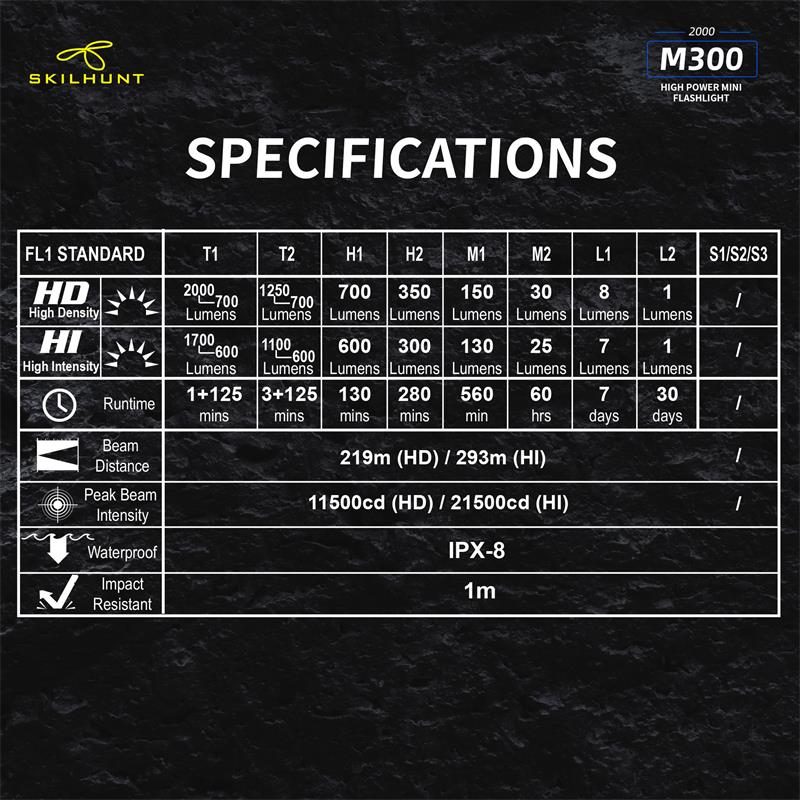

Max output:

HD: ANSI 2000 Lumens

HI: ANSI 1700 Lumens

Max runtime: 30 days

Max beam distance: HD: 219 meters    HI: 293 meters

Max peak beam intensity: HD: 11500 cd   HI: 21500 cd

Waterproof: IPX-8

Impact resistant: 1 Meter

Battery: 1×18650 , 2 × CR123A

Rated Range: 2.7V ~ 8.4V

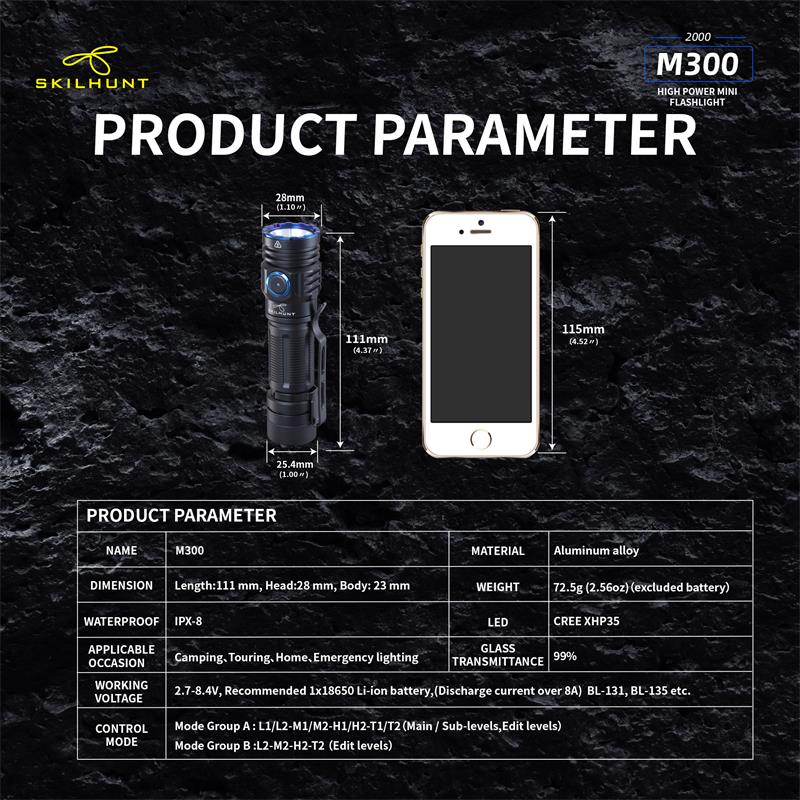

Dimension:

Length 111 mm / 4.37 inch

Head diameter 28 mm / 1.19 inch

Body diameter 23 mm / 0.9 inch

Weight: 72.5 g / 2.56 oz (without battery)

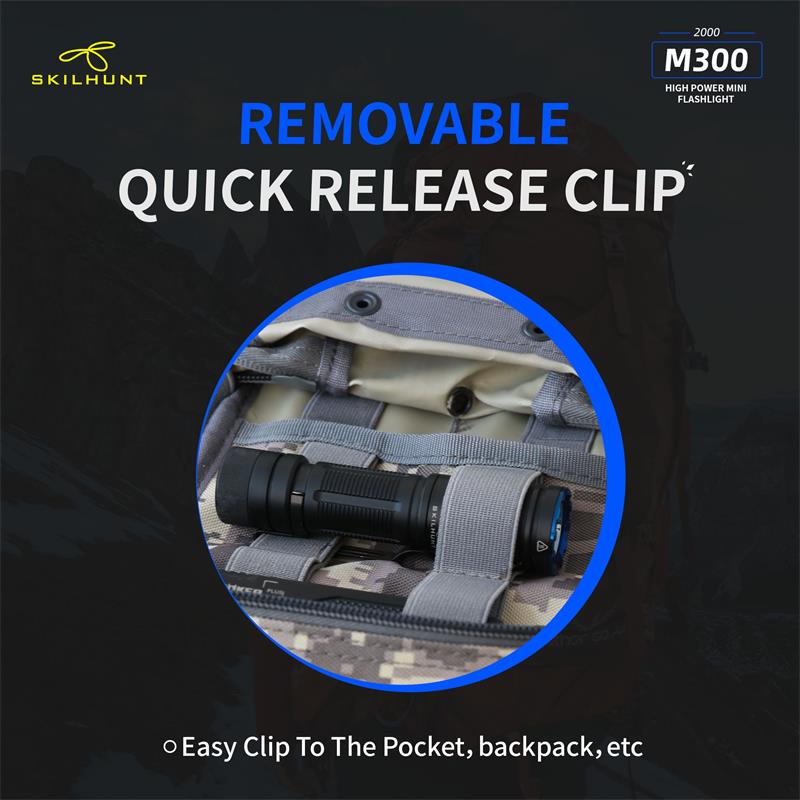

Accessories: User manual,Spare O-rings,Lanyard,Clip, Magnetic Charging Cable .

Operation

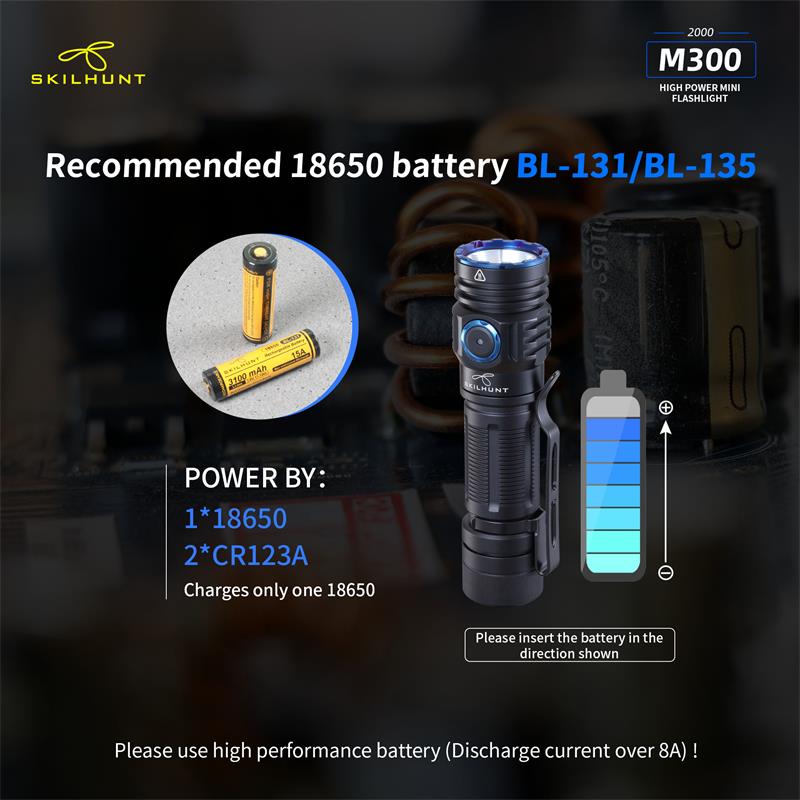

Battery installation & Replace magnet: Insert the battery into the flashlight,the battery positive pole toward the light head.

Ensure batteries are inserted correctly, the flashlight will not operate with incorrectly inserted batteries. Ensure when the light turning on,the beam is directed away from the eyes.

When take the light with Bankcards(magnetic) or Cell phone,should replaced Magnet with rubber pad.

Turn ON/OFF & Mode transfer

Transfer Mode A / Mode B:

When flashlight is turned off without lockout, hold press side switch 5 seconds, light will flash three times faster then flash three times slow.

Mode Group A

When the flashlight was OFF status:

Click switch to memorized brightness level.

Quickly double click switch to Turbo(T1/T2).

Quickly triple click switch to Strobe(S1) mode.

Press switch 0.5 second to Low(L1/L2) mode.

When the flashlight was ON(any mode) status:

Press and hold the side switch 0.5 second to turn off.

Brightness & mode selection:

Brightness level:

Press side switch to Low-Mid-High-Turbo, cycle.

Quickly double press the side switch to Sub-level(i.e between L1 & L2), turn off memorized the last brightness.

Quickly triple press to Special modes.

Special modes:

Quickly triple press the side switch to Strobe (S1), then double-click to switch S1/S2/S3 mode, Press side switch back to previous brightness level.

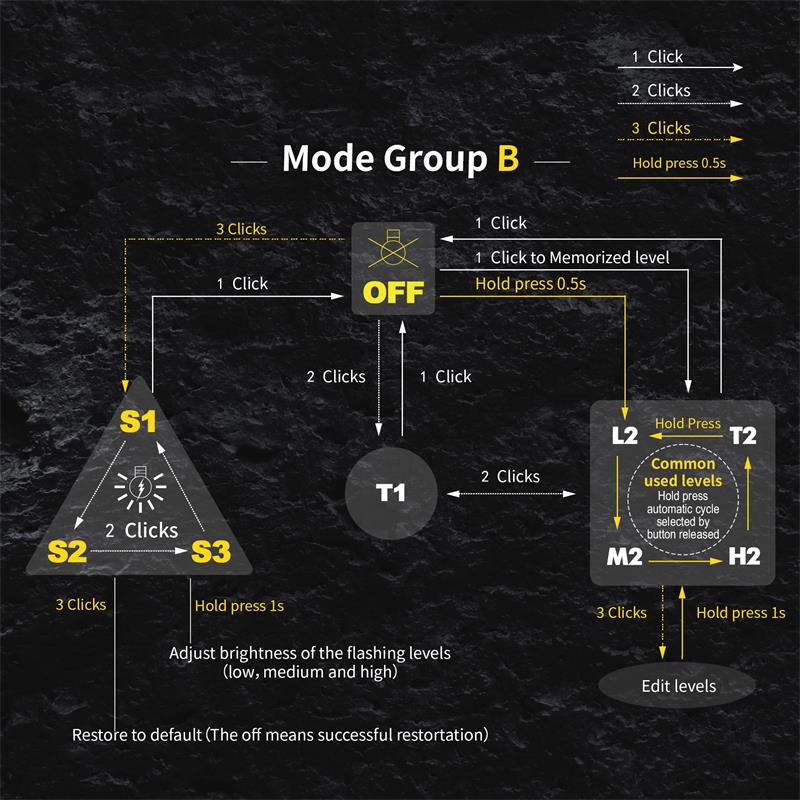

Mode Group B

When the flashlight was OFF status:

Click switch to memorized brightness level.

Press switch 0.5 sec,to L2.

Quickly double click switch to Turbo(T1) mode.

Quickly triple press to Special modes(S1).

When the flashlight was ON(any mode) status:

Click switch to turn off.

On Common used levels(Editable):

Hold press switch, brightness levels automatic cycle, and selected mode by button released. Click switch to turn off.

Quickly triple press enter to Edit levels.

On Special modes:

Quickly double click switch to transfer mode S1/S2/S3，click switch to turn off.

Hold press side switch 1 second to adjust the S1/S2/S3 brightness output level in Low, medium or high.

Quickly triple press to restore to the factory default flash modes.

Edit Levels:

— Support to 2 ~ 7 common used levels can be selected

–Enter to edit level, 7 levels circle automatically. The selected level, side switch indicatior is on. Not selected brightness, side switch indicator is off.

–Factory’s default levels: L2-M2-H2-T2. The indicator light on synchronously when levels automatic cycles.

–Selected / Not selected brightness, Click side switch to turn on / off the corresponding indicator.

-. All selected finished, hold press 1 second the side switch save selected and quit edit mode. The light will be flash three times, and back to the lowest selected level.

-. Restore the factory default levels: Enter to edit level, then click side switch three times. (Light will be turn off after three clicks.)

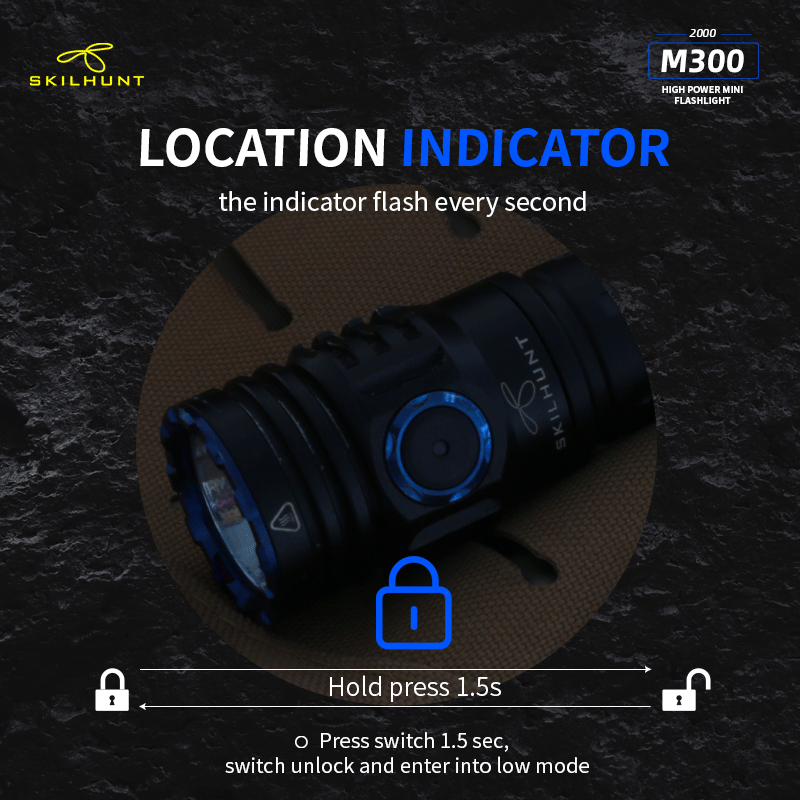

Location indicator & Lock-out function

When turn off the flashlight, press switch 1.5 second,location indicator switch on and lock-out function activation at same time,click double click the switch to turn on/off the indicator, the indicator light flash every second, locate the flashlight, Easy find the flashlight in the dark quickly.Press switch 1.5 sec, switch unlock and enter into low mode.

Power indicator

Every time turn on , the side indicator will be light 5 seconds to display the battery power.

Blink four times : battery power in 100%~80%;

Blink three times : battery power in 80%~50%;

Blink twice : battery power in 50%~20%;

Blink one time : battery power below 20%.

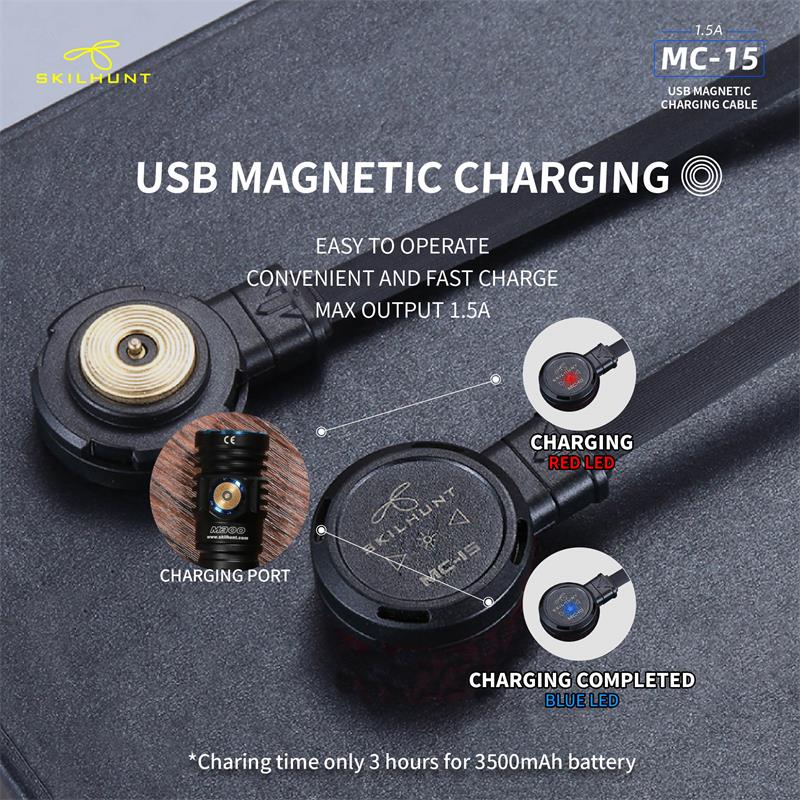

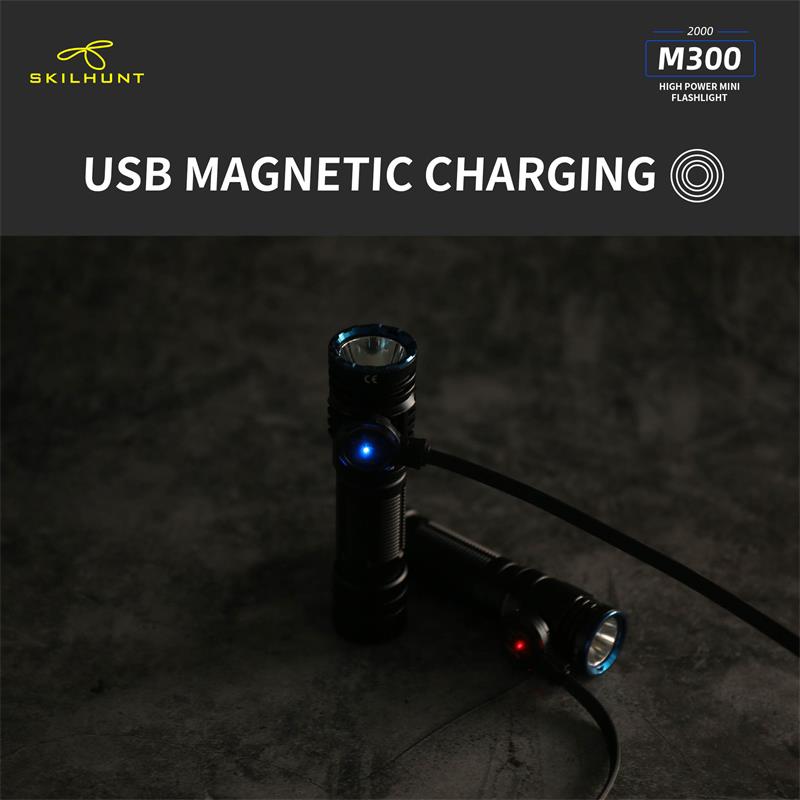

Charging instructions and notices

In charging, the red indicator constant light on, when battery almost full charge, indicator change to constant blue light. When the red indicator flash, please check battery contacts good or not.

Warning: Rechargeable function only for one 18650 (3.6/3.7V) rechargeable lithium battery! Please make sure the battery is correctly insert, otherwise it will damage the charging system.

Turbo T1 is accessible by 18650 at load voltage ≥ 3.6V, is inaccessible by 2 x CR123A batteries!
