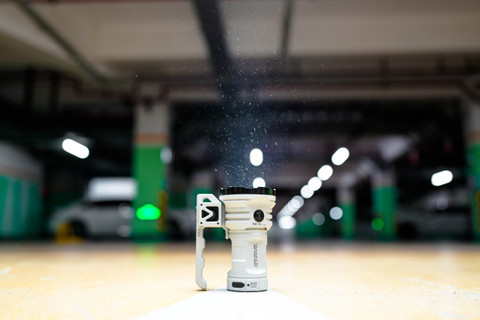

MANKERLIGHT Mankerlight MK38 Satellite (Built-in Battery Pack)
$399
Quantity
-
DetailProduct Description Features - Option1: Utilizes 8x XHP70.2 LEDs (6500K) with a max output of 41,500 lumens
Maximum beam intensity of 160,000 cd, and maximum throw distance of 800 meters - Option2: Utilizes 8x XHP70.2 LEDs (5000K) with a max output of 39,425 lumens
Maximum beam intensity of 144,400 cd, and maximum throw distance of 760 meters - Option3: Utilizes 8x SFT40 LEDs (6500K) with a max output of 20,000 lumens
Maximum beam intensity of 360,000 cd, and maximum throw distance of 1,200 meters Integrated precision digital optics technology provides extreme reflector
performance Utilizes dual-sided AR coated, 99% transmittance toughened glass lens A step-down constant current circuit design with an efficiency rate up to 98%
Buil-in 10.8V / 4200mAh li-ion battery pack (made by 3x 3.6V/4200mAh 21700 battery cells) Fast USB Type-C charging with discharging function available 1.8 hours
for full charging, 1.5 hours for full charging over 90% Built-in intelligent adaptive charging and discharging function and protocols of QC3.0 & PD3.0 With advanced
intelligent temperature regulation module, MK38 regulates its output and adapts to the ambient environment, maintaining optimal performance Electronic reverse
polarity protection and over-discharge protection Integrated power indicator under the side switch indicates remaining battery voltage Integrated indicator near
USB-C port indicates the status of charging & powerbank discharging Multi-switches design, clear division: - Stainless steel side switch control the light to turn
on/off and change modes etc - Front switch on handle control 2x waterproof cooling fans to turn on/off - Rear switch on handle control the light to turn on/off and
change modes etc User interface is simple and friendly, easy one-hand operation: - From OFF, long press to ECO modes. - From OFF, single press to General
modes. - Double click to Turbo from any modes (except LOCK-OUT) - From OFF, quick triple click to Special modes (Strobe / Beacon / SOS to select) - From OFF,
quick quadrple click to lock-out the light CNC machined from durable aircraft-grade aluminum alloy Surface finish (option): Premium type-III hard-anodized or
Micro-arc oxidation Stainless steel strike bezel is used to break windows in an emergency situation Triple-interface on flashlight head: Stainless steel side switch,
UNC1/4" triple hole, waterproof 4PIN connector socket Built-in UNC1/4" tripod hole, MK38 can be directly mounted to a tripod, turning it into a camp light or a fixed
supplementary light Utilizes stainless steel side switch with CD pattern surface for good touch feelings Detachable handheld handle meets various lighting demands
Triple-sided premium cooling fins improve heat dissipation performance Built-in double-row cooling fans on the handle to blow effectively cooling fins through outside
Convenient tail-stand capacbility IPX-7 waterproof standard (1 meters under water) Impact resistant to 1 meter What's package Included? 1x Manker MK38
flashlight (built-in battery pack) 1x Detachable handle 1x USB Type-C cable 1x Super charging adapter (Plug option: U.S. or UK or European or Australian)
1x Quick release screw 1x Stainless steel tag tool 1x Lanyard 1x User manual Size & Weight
Technical Data MK38 with 8x XHP70.2 LEDs 6500K: Modes/Level
Luminance Runtime Turbo mode - Turbo level (Thermal regulation): 41,500 lumens
1 hours 30 minutes General mode - High level (Thermal regulation): 20,000 lumens
1 hours 40 minutes General mode - Mid3 level (Thermal regulation): 10,000 lumens
1 hours 50 minutes General mode - Mid2 level: 5,000 lumens
2 hours 20 minutes General mode - Mid1 level: 2,200 lumens
5 hours General mode - Low level: 1,000 lumens 10 hours ECO mode - L4 level:
400 lumens 20 hours ECO mode - L3 level: 180 lumens 28 hours ECO mode - L2 level:
80 lumens 50 hours ECO mode - L1 level: 40 lumens 66 hours Special mode - Strobe:
25,000 lumens - Maximum light intensity: 160,000 cd Maximum beam distance: 800 meters Waterproof standard: IPX-7,
1Meters under water Impact resistant: 1 meters MK38 with 8x XHP70.2 LEDs 5000K: Modes/Level
Luminance Runtime Turbo mode - Turbo (Thermal regulation): 39,425 lumens
1 hours 30 minutes General mode - High level (Thermal regulation): 19,000 lumens
1 hours 40 minutes General mode - Mid3 level (Thermal regulation): 9,500 lumens
1 hours 50 minutes General mode - Mid2 level: 4,600 lumens
2 hours 20 minutes General mode - Mid1 level: 2,090 lumens
5 hours General mode - Low level: 950 lumens 10 hours ECO mode - L4 level:
400 lumens 20 hours ECO mode - L3 level: 180 lumens 28 hours ECO mode - L2 level:
80 lumens 50 hours ECO mode - L1 level: 40 lumens 66 hours Special mode - Strobe:
23,750 lumens - Maximum light intensity: 144,400 cd Maximum beam distance: 760 meters Waterproof standard: IPX-7,
1Meters under water Impact resistant: 1 meters MK38 with 8x SFT40 LEDs 6500K: Modes/Level
Luminance Runtime Turbo mode - Turbo (Thermal regulation): 20,000 lumens
2 hours General mode - High level (Thermal regulation): 10,000 lumens
2 hours 15 minutes General mode - Mid3 level (Thermal regulation): 5,000 lumens
2 hours 30 minutes General mode - Mid2 level: 2,500 lumens
3 hours General mode - Mid1 level: 1,300 lumens 6 hours General mode - Low level:
650 lumens 12 hours ECO mode - L4 level: 320 lumens 22 hours ECO mode - L3 level:
160 lumens 33 hours ECO mode - L2 level: 80 lumens 50 hours ECO mode - L1 level:
40 lumens 66 hours Special mode - Strobe: 12,000 lumens - Maximum light intensity: 360,000 cd
Maximum beam distance: 1,200 meters Waterproof standard: IPX-7, 1Meters under water Impact resistant: 1 meters More information, please check
the table on the photo as belows: (* Note: You can open this photo in new tab on your Google chrome to enlarge.)

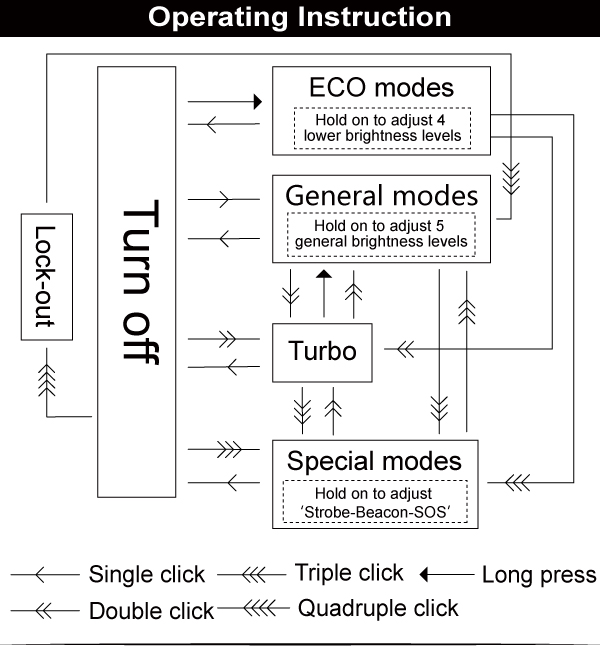

Operating Instruction
※ Note: The front switch on the handle can turn on/off the cooling fans. The stailess steel side swtich on flashlight head and the rear switch on the handle
can control flashlight ON/OFF, mode operation etc. Cooling Fan Operation ON/OFF: In any state (except LOCK-OUT), single click the front switch on the
handle to turn on 2x cooling fans. A single click after this turns the fans OFF. △ Note: When the light is ON, Single click side switch (or rear switch) also to
turn off the cooling fans. Mode Operation ON/OFF: When the light is OFF, any click the side switch (or the rear switch) to turn the light ON. When the light is ON,
just single click the side switch (or the rear switch) to turn the light OFF. ECO Modes: From OFF, simple press and hold down the side switch (or the rear switch)
to activate ECO modes. press and hold down the side switch (or the rear switch) again after this activates. the light cycle through "L1->L2->L3->L4"
(or "L4->L3->L2->L1"). When the light cycle to the last level "L4" (or "L1"), the light will stop to cycle and stay at last level. If you want to select one level you
need, just release the side switch (or the rear switch) while the light cycling. If you press and hold down the side switch (or the rear switch) again, the light will
be cycled through opposite direction. △ Note: After activate ECO modes, single click to turn OFF the light; double click to activate Turbo mode; quickly triple
click to activate Special modes. General modes: Single click the side switch (or the rear switch) to activate General modes. Press and hold down the side
switch (or the rear switch) agin after this activates. the light cycle through "Low->Mid1-Mid2 ->Mid3->High" (or "High->Mid3->Mid2->Mid1->Low"). When the
light cycle to the last level "High" (or "Low"), the light will stop to cycle and stay at last level. If you want to select one level you need, just release the side
switch (or the rear switch) while the light cycling. If you press and hold on the side switch (or the rear switch) again, the light will be cylced through opposite
direction. △ Note: After activate general modes, single click to turn OFF the light; Double click to activate Turbo mode; Quickly triple click to activate Special
modes. Turbo mode: Double click the side switch (or the rear switch) to activate Turbo from any other modes (except LOCK-OUT). △ Note: After activate Turbo
mode, single click to turn OFF the light; double click or long press to activate General modes; quickly triple click to activate Special modes. Special modes:
From OFF, quickly triple click the side switch (or the rear switch) to activate strobe. From strobe, press and hold down to cycle through the other safety modes;
Beacon > SOS > back to strobe. △ Note: After activate Special modes, single click to turn OFF the light; double click to activate Turbo mode; quickly triple click
to activate General modes. Breathing light mode: From OFF, click and hold for 3 seconds and release. LED indicator under the side switch will start to breath.
There is nothing particular about this except that it is a cool mood light. Click once to turn off. △ Note: While holding down the side switch (or the rear switch) for
3 seconds, MK38 will activate one level of ECO modes and turn off automatically, and then LED indicator under the side switch will turn on. LOCK-OUT /
UNLOCK: Locking out the light when not in use is highly recommended. From OFF, quickly quadruple click (simply click 4 times fast) to LOCK-OUT. The light
will then a blink to indicate that it has been LOCKED. To UNLOCK, quickly quadruple click (simply click 4 times fast) again, the light will turn on to indicate it has
been unlocked. Memory function: From OFF, single click (or long press) the side switch (or the rear switch) to activate the light level at General modes (or ECO

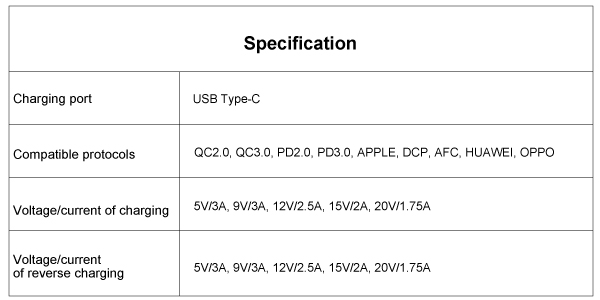

modes) last used. Battery packing charging & power bank function
Battery pack charging: 1. Please switch off the light and plug the USB Type-C charging cable into the included standard adapter, then connect another USB
Type-C socket of the charging cable to the light. 2. MK38 have intelligent identified charging function. When battery pack charging, the indicator near USB-C
port will be red constant ON, the indicator will be OFF after battery pack charging is completed. 3. Be sure to close the anti-dust USB cover once battery pack
charing is completed. Power bank function: 1. Please switch off the light and connect the USB Type-C socket of the included charing cable to the light, then
connect another USB Type-C socket of the charging cable to the digital device with a USB type-C charging port. 2. MK38 have intelligent identified discharging
function. When battery pack discharging as power bank, the indicator will be red constant-ON. 3. Be sure to close the anti-dust USB cover once the battery
pack discharging is completed.
* Note: A. You can turn the light ON / OFF and operate all modes when charging & discharging. B. Battery pack can be full charged in approximately 1.8 hours
with the included standard adapter and USB Type-C charging cable. C. Recharge a stored every four months to maintain optimum performance of the battery.
D. When Connecting to the power bank with the same PD protocol, It might fail to be charged if the protocols are not compatible with the device. For example,
Power bank is charging to MK38, or MK38 is charging to the power bank. E. As a power bank, MK38 can charge only one digital device at a time. Please DO
NOT use it to charge a digital device through any multi-port USB hub or charge two or more digital devices at the same time. Battery Voltage Indicator When the

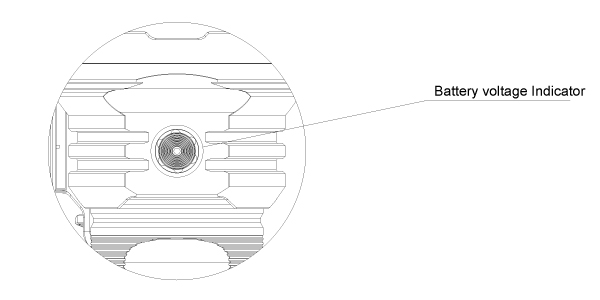

light is turned on, the built-in power indicator under the stainless steel side switch will show different color light to indicate remaining battery voltage:
While battery voltage > 10.2V, blue light turn on and last 3s. While battery voltage 9.6V-10.2V, purple light turn on and last 3s. While battery voltage 8.7V-9.6V,
red light constant-on. While battery voltage < 8.7V, the light turn off authomatically. * Low voltage warning When the battery voltage level drops below the present
level, the light is programmed to downshift to a lower brightness level until lowest output is reached. When the battery voltage level still drops low under lowest
output, it will shut off authomatically. Intelligent Overheat Protection Advanced intelligent temperature regulation technology allows MK38 to dynamically adjust
output performance according to its body temperature.The light will accumulate a lot of heat when you use it at high-output levels for extended periods. When the
light reaches the temperature of 65°C or above, the light will automatically step down its output to reduce the temperature. at the same time we also make more
premium cooling fins on flashlight head and built-in duable-row fans to blow effectively these cooling fins through the outside to protect flashlight overheat. *
Note: DO NOT submerge the flashlight into any liquid when it is hot. Doing so may cause irrepareable damage to the light due to the difference of air pressure

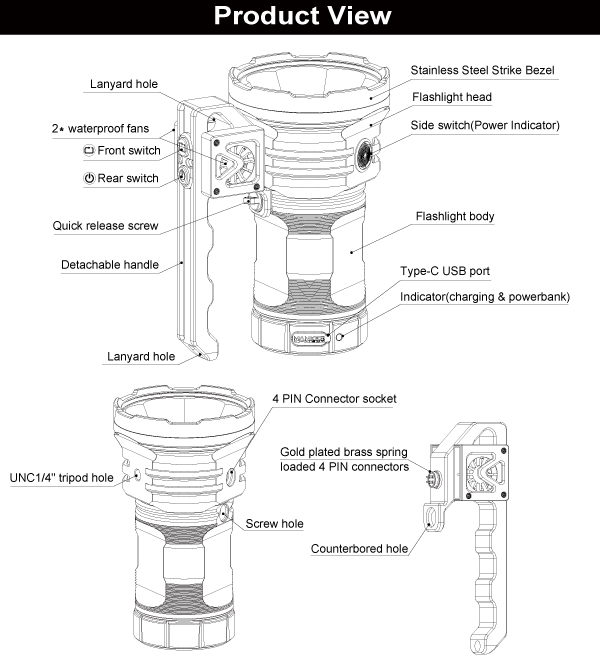

inside and outside of tube. Product View

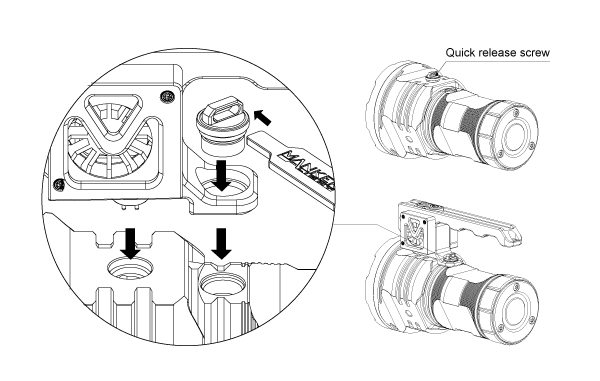

Handle Installing & Disassembling
How to disassemble the handle? 1.Switch off flashlight and use tag tool (included accessory) to press the quick release screw on the counterbored hole, loose
the screw counterclockwise, and then twist out the screw with your hand. 2.Lift up the handle, 4PIN connectors on the handle will take off from the connector
socket on flashlight head. then you can place the handle to somewhere. 3. Please insert quick release screw into the connector socket and tighten it. At last
please use tage tool (included acccessory) to press the screw to tighten it fully to get a waterproof, and then you can switch on flashlight as usual. How to
install the handle? 1.Switch off flashlight and use tag tool (included accessory) to press the quick release screw on the connector socket, loose the screw
counterclockwise, and then twist out the screw with your hand. 2.Lift up the handle, make sure the the counterbored hole align the screw hole on flashlight
body and 4PIN connectors on the handle will also align the connector socket on flashlight head. 3.Put the screw through the counterbored hole and make
the screw tip into the screw hole on flashlight body, and then take tag tool (included accessory) to press the screw to tighen.
Warning
1. The flashlight is locked out default by us. Please quickly four-click to unlock it for the first use.
2. The flashlight is high-intensity lighting device capable of causing eye damage or other harms, so please avoid shining the light directly into anyone's eyes.
3. The flashlight is recommended use for adult or under adult supervision. Please keep this flashlight away from children.
4. Please take off the dustproof filme from lens immediately for the first use.
5. This flashlight is capable of emitting intense heat when turning on for a long period of time. Remember to install the handle before using. Avoid touching the
appearance of the flashlight.
6. DO NOT shine a object at close range, cover the flashlight, or place the head to face down when it is turn on. The heat bilt-up may objects to burn or even
result in unexpected disasters.
7. After the cooling fans ON, DO NOT push your fingers into fans and force them to stop working as it will demage the fans.
8. DO NOT immerse the flashlight in seawater or other correosive media as it will damage the flashlight.
9. Please turn the flashlight off and make sure that its lock out if it is left unused, carried or transproted. The heat built-up due to accidental activation may melt
the lens of the flashlight, cause close objects to urn, or even result in unexpected disasters.
10. The built-in battery pack is charged to approximately 50% by default and will not support maximum output and maximum runtime.
11. To maintain waterproof rating, please lubricate the o-ring with silicone safe lubricant and replace worn o-rings as needed.
12. Please recharge the product every 4 months when left unused for a prolonged time.
13. DO NOT disassemble or modify this product which can cause damage and will void the warranty.
14. When battery pack are full charged, led indicator will turn OFF. at the same time please don't forget to take off USB Type-C charging cable and close the anti-dust
USB cover immediately.
15. After uninstall the handle, please put the quick release screw into the connector socket on the flashlight head and tighten it to get a better waterproof.
16.After discharge as power bank is complete, please don't forget to close the anti-dust USB cover immediately -
