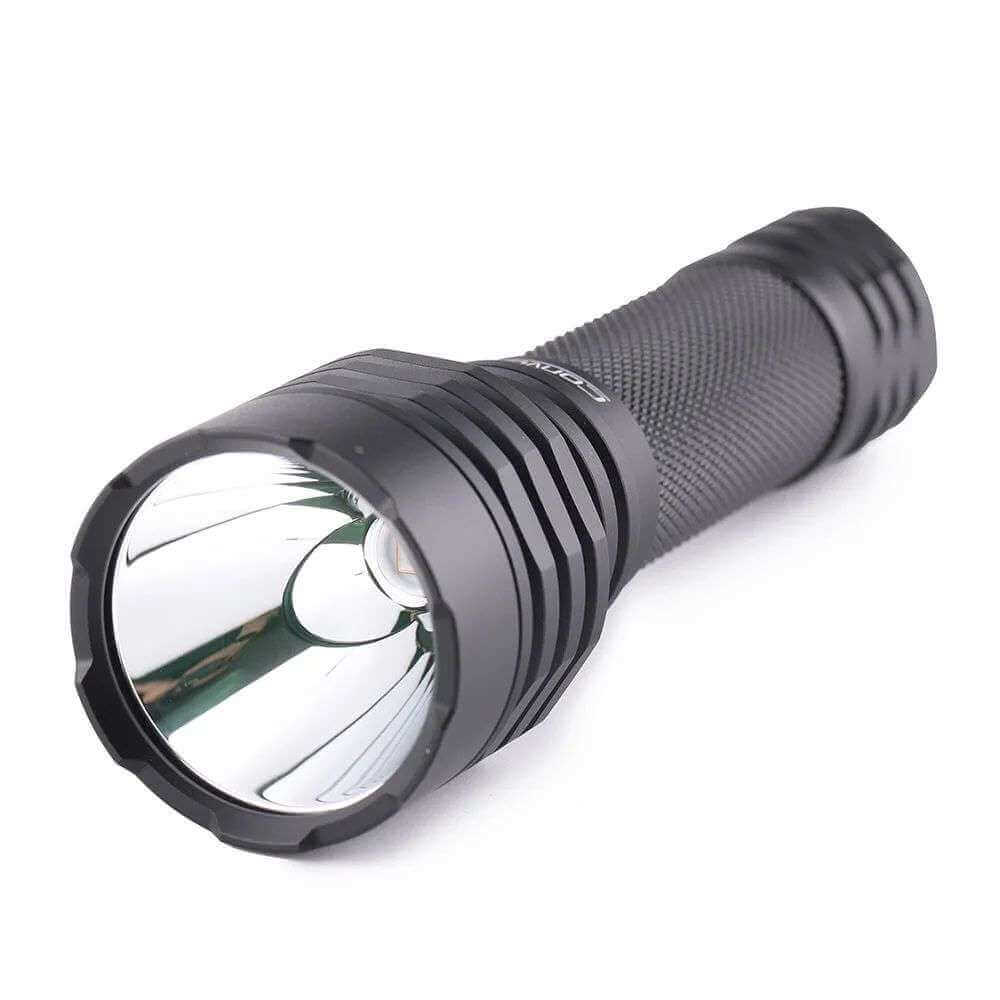

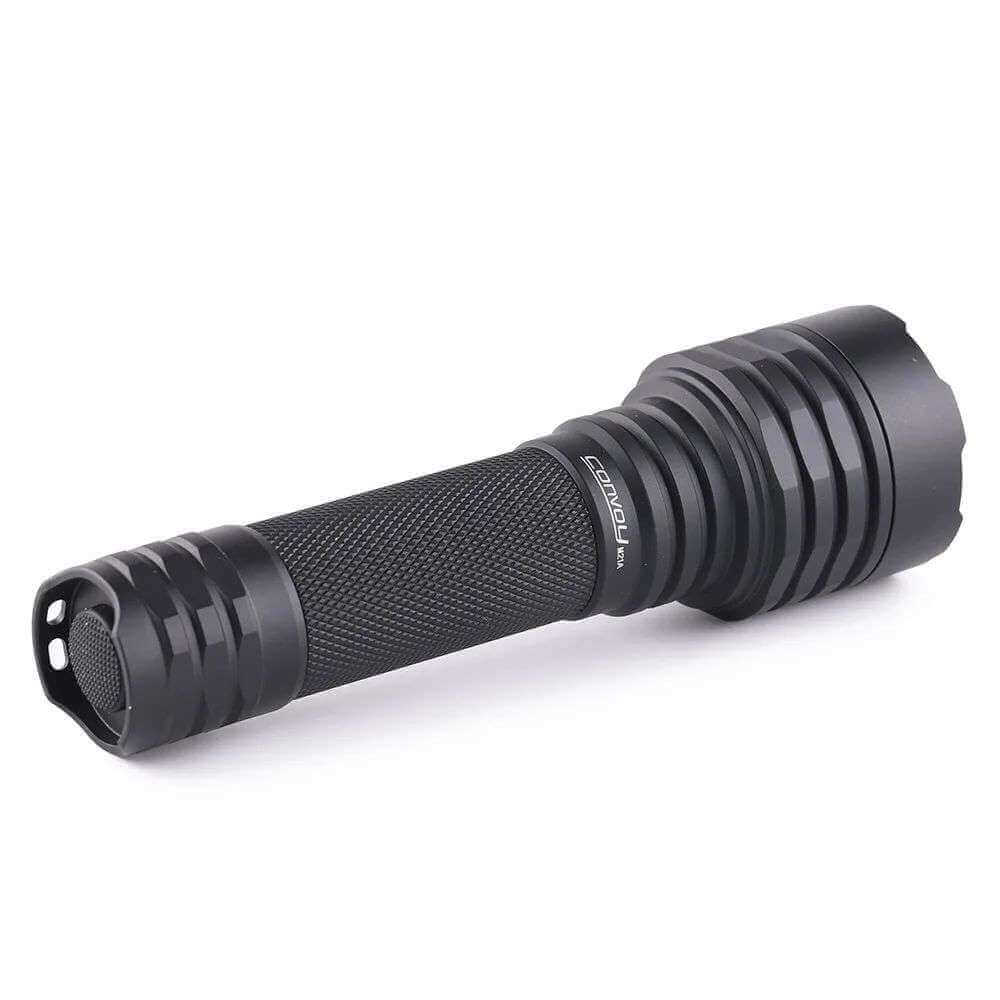

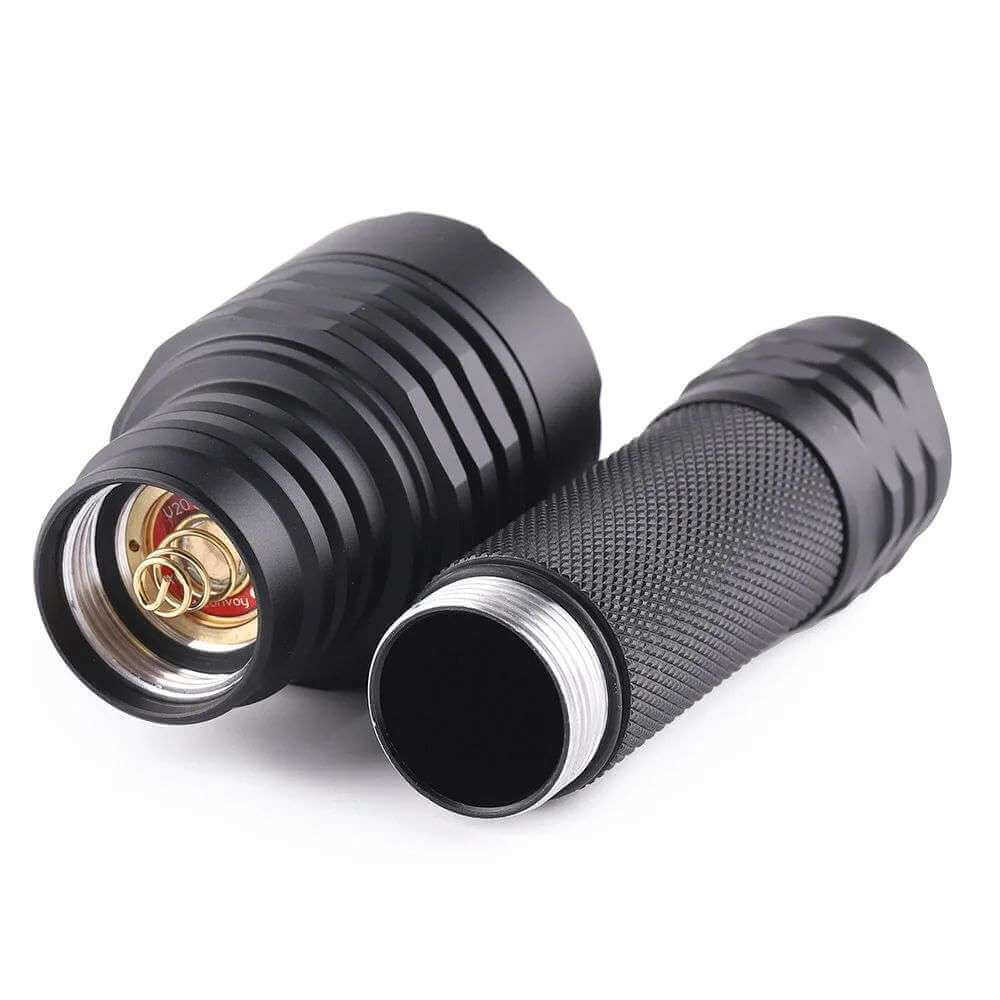

Convoy M21A GETIAN GT 21700 Flashlight

PARAMETER

Material: Aluminum Alloy

LED: GETIAN GT LED

Low voltage warning: Yes

Reverse polarity protection: Yes

Lens type: Ar-coated glass lens

Reflector:smooth

Mode memory:Yes

Tailstand: Yes

Battery included: No

Required battery type: unprotected21700 lithium battery

Required battery quantity:1pcs

Driver:3V 8A BUCK 12groups, Temperature protection management inside

Head diameter: 44.5mm

Height 155.8mm

Body diameter 27.3mm

Tail diameter 31.3mm

weight 168g

12 groups:

1.click the switch to turn the flashlight on/off,tap the switch to select mode

2.if flashlight is turnedon,tap the switch 20 times quicklyto enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)

Option 1(normal-flash 1 time+ buzz-flash):tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.

-------------sub-option 1.1 (normal-flash1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)

-------------sub-option 1.2 (normal-flash2 times) : tap the switch to select mode group2 (0.1%, 1%, 10%, 35%, 100%)

-------------sub-option 1.3 (normal-flash3 times) : tap the switch to select mode group3 (100%, 35%, 10%, 1%, 0.1%)

-------------sub-option 1.4 (normal-flash4 times) : tap the switch to select mode group4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)

-------------sub-option 1.5 (normal-flash5 times) : tap the switch to select mode group5 (1%, 20%, 100%)

-------------sub-option 1.6 (normal-flash6 times) : tap the switch to select mode group6 (100%, 20%, 1%)

-------------sub-option 1.7 (normal-flash7 times) : tap the switch to select mode group7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)

-------------sub-option 1.8 (normal-flash8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)

-------------sub-option 1.9 (normal-flash9 times) : tap the switch to select mode group9 (50%, 10%, 1%, 0.1%)

-------------sub-option 1.10 (normal-flash10 times) : tap the switch to select mode group10 (1%, 10%, 35%, 100%)

-------------sub-option 1.11 (normal-flash11 times) : tap the switch to select mode group11 (100%, 20%, strobe)

-------------sub-option 1.12 (normal-flash12 times) : tap the switch to select mode group 12(100% only)

Option2(normal-flash 2 times+ buzz-flash):tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enterinto the last mode.

battery-checkinstructions:

<2.95V1 flash,

2.95-3.25V2 flashes,

3.25-3.55V3 flashes,

3.55-3.85V4 flashes,

>3.85V5 flashes
