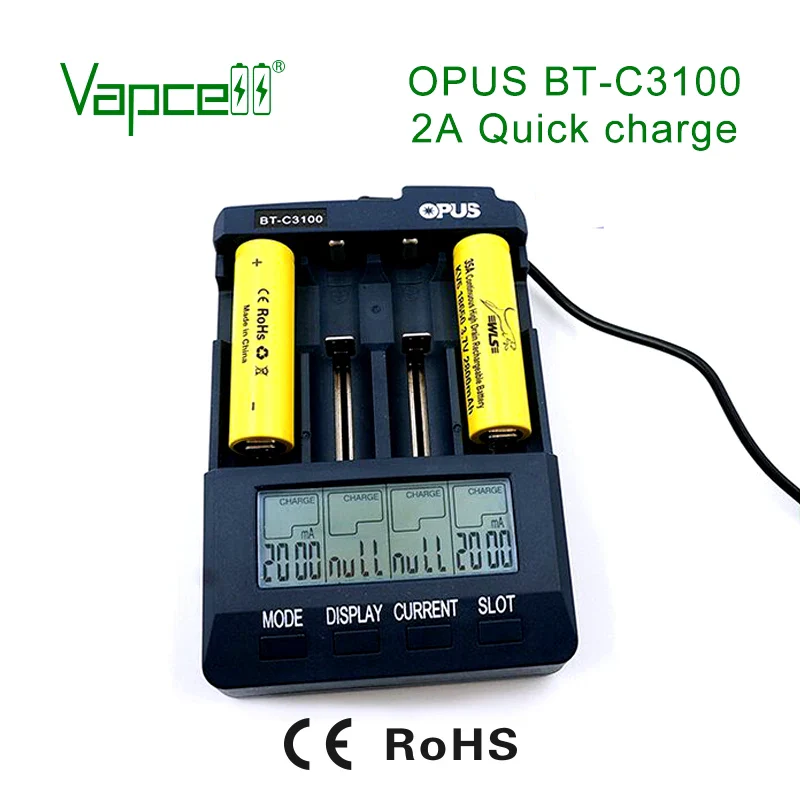

Vapcell Opus BT-C3100 4 Slot Battery Charger
-
Detail
Input voltage
AC 110~240V 50/60HZ or DC 12V
Output voltage
4.2V ±1% / 1.48V ±1%
500mA CC current
> 450mA
1000mAh CC current
> 950mA
Cut-off Voltage
4.2V ± 0.05V
TC Current, 0.5-1A
375mA ± 4 / 750mA ±2
Auto recharging Threshold Value voltage
3.9V ± 0.15mA
Activation Voltage ( battery voltage < 2V)
0.45 ±0.15mA
Operation Temperature
0-40°C
Storage Temperature
-40 - +70°C
Compatible batteries
26650, 22650, 18650, 17670, 18490, 17500, 17335, 16340(RCR123), 14500
Ni-MH / Ni-Cd
AA, AAA
Certification
CE, RoHs, UL( for the plug)
1.The charging current can be selected for200mA, 300mA,500mA,700mA and 1000mA.
Defaultdischarging current is 500mA.
2.It provides four independent charging slots for rechargeable batteries. The charger can
chargebatteriesof different type and size and with different capacity at the same time
3.The charger integrates the minus delta voltage (-ΔV) for NiCd or NiMh battery charging
termination, and for Li-ion batteries charging to 4.2V with pre-selected constant current.
4. The charger also includes overheat detection to protect rechargeable batteries and chargeritselffromoverheating.
5. New added quick test mode to test the battery impedance.
6. Four Working Mode Available at User's Choice: Charge, Discharge, Test,Quick Test andRefresh.
7. Easy Read LCD with back light Showing Battery Voltage, Charge/Discharge Current,Charging Time,Battery Capacity etc.
8.Designed for AA(LR6) and AAA(LR3) NiCd, NiMH or 3.7v Li-ion rechargeable batteries insize type of
10440, 14500, 16340, 18500, 18650, 26650, 26500
9. Ideal for Office and Home use.
10. Operating temperature: 0°C - 40°C
11. Max. Charging Capacity: 20000mAh
12. Power Adapter:Output: 12V DC,3.0A; Input: 100~240V~, 50/60Hz
-
