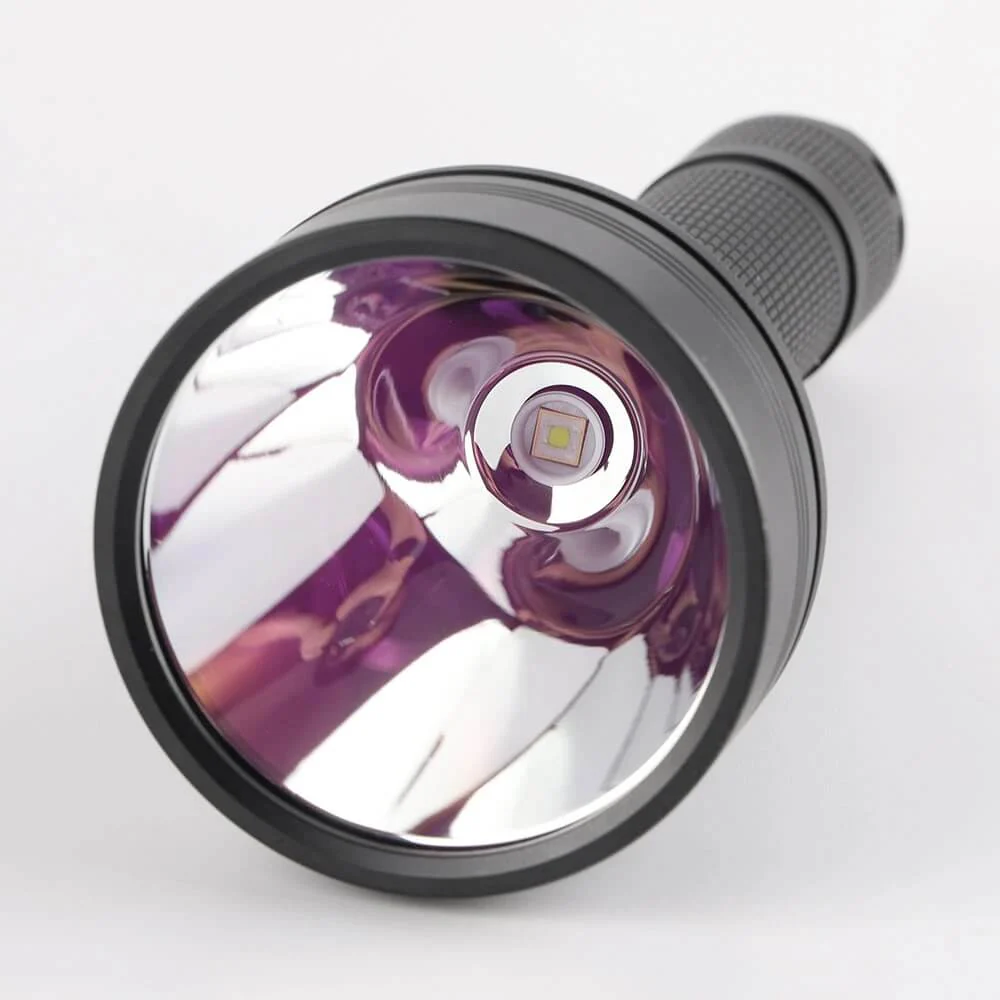

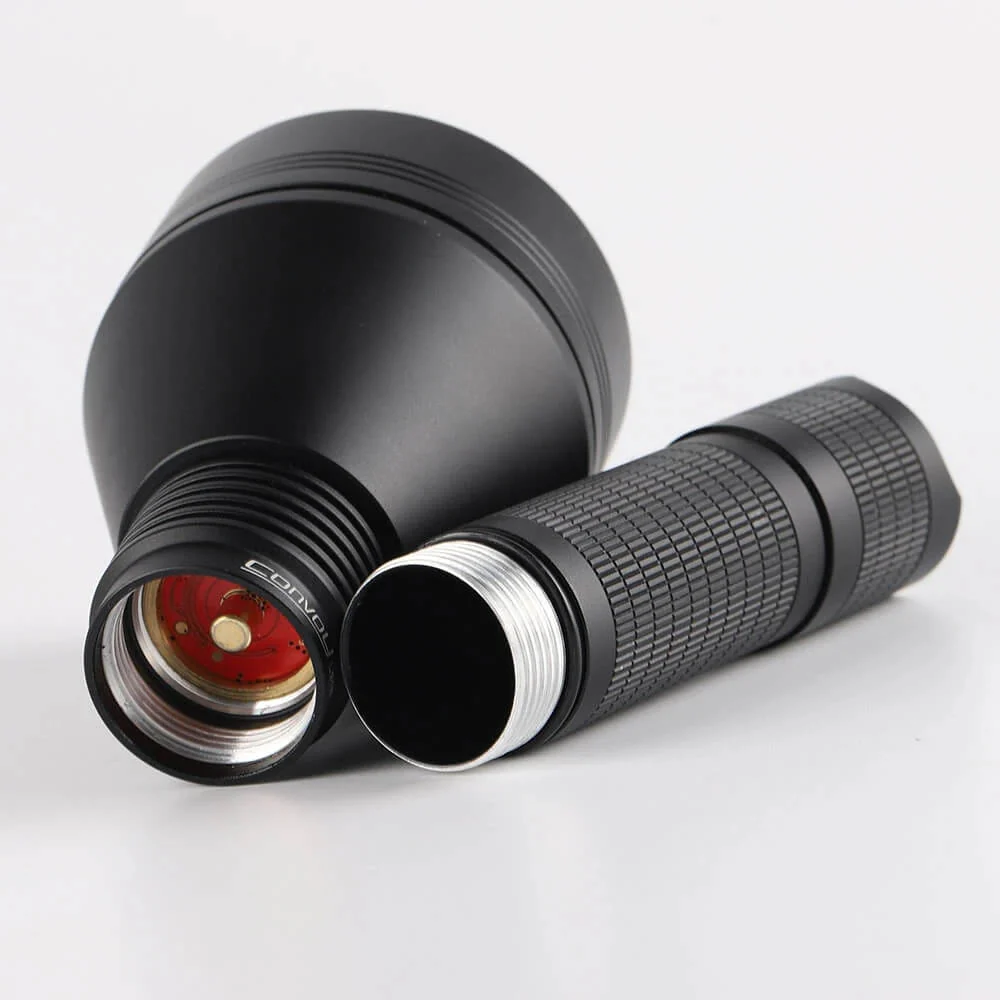

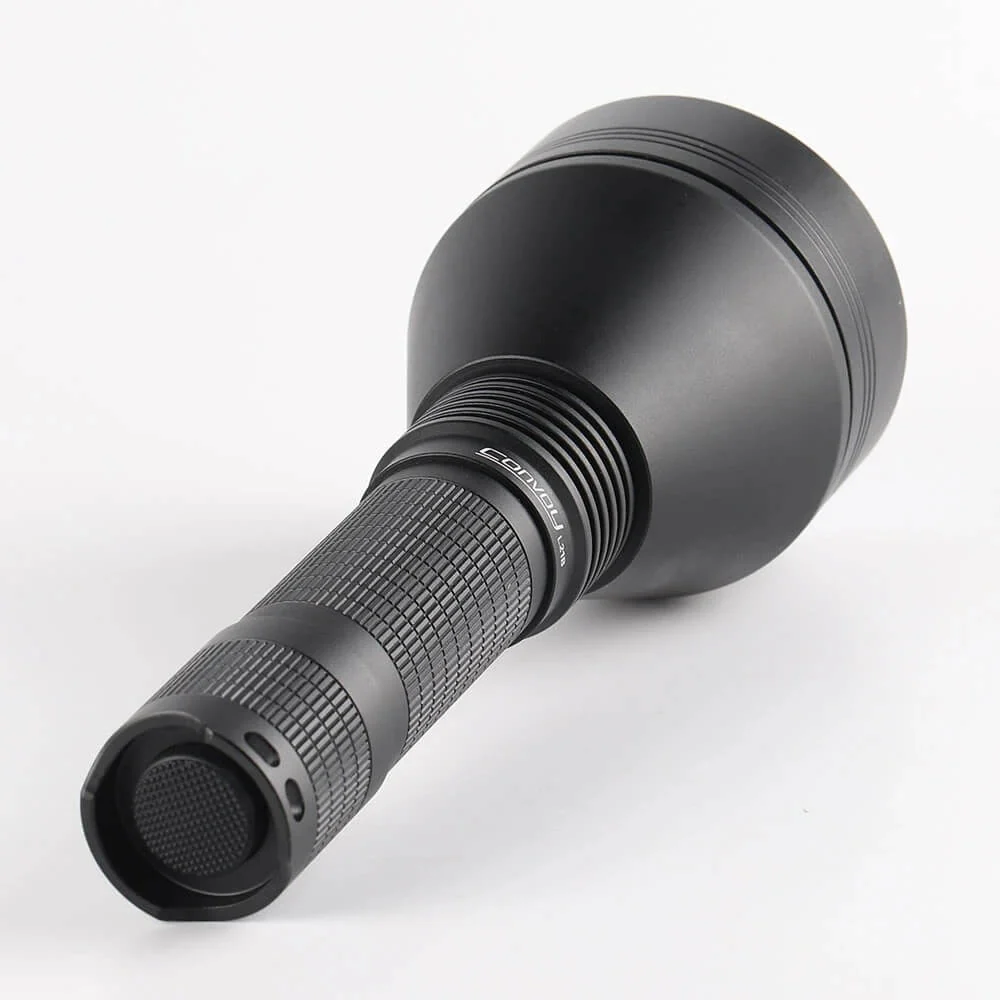

Convoy L21B XHP70.3 HI Long Range Torch

Material: Aluminum Alloy
LED: CREE XHP70.3 HI R70 / R9050 (R9050 has higher CRI but lower brightness)
Max flux: R70 4000LM, R9050 3000LM
Low voltage warning: Yes
Reverse polarity protection: Yes
Lens type: Ar-coated glass lens
Reflector: smooth
Mode memory: Yes
Tailstand: Yes
Required battery type: 21700 lithium battery
Required battery quantity: 1pcs
Driver: 1500mA output, one mode 100%
Length / Head diameter / Body diameter : 170.5mm / 62.6mm / 26.1mm
Net weight: 212g
Gross weight：247g

Package type:

A. With 21700 battery:
1*Flashlight
1*21700 rechargeable battery
1*USB charger
1*Rope

B. No battery:
1* Flashlight
1*Rope

Operation instructions: (12 groups)

1.Click the switch to turn the flashlight on/off,tap the switch to select mode
2.If flashlight is turned on,tap the switch 20 times quickly to enter into config mode.(On a visual interface,as long as you click on an option, it means that the option is selected. The flashlight has no visual interface. It flashes to represent an option, and "tap the switch in the flashing process" means to select the option.)
Option 1 (normal-flash 1 time + buzz-flash): tap the switch to enter into sub-option to select the mode group,If the user has no operation, the config mode will enter option 2.
-------------sub-option 1.1 (normal-flash 1 time) : tap the switch to select mode group 1 (0.1%, 1%, 10%, 35%, 100%, strobe, biking, battery-check)
-------------sub-option 1.2 (normal-flash 2 times) : tap the switch to select mode group 2 (0.1%, 1%, 10%, 35%, 100%)
-------------sub-option 1.3 (normal-flash 3 times) : tap the switch to select mode group 3 (100%, 35%, 10%, 1%, 0.1%)
-------------sub-option 1.4 (normal-flash 4 times) : tap the switch to select mode group 4 (1%, 20%, 100%, strobe, biking, battery-check, SOS)
-------------sub-option 1.5 (normal-flash 5 times) : tap the switch to select mode group 5 (1%, 20%, 100%)
-------------sub-option 1.6 (normal-flash 6 times) : tap the switch to select mode group 6 (100%, 20%, 1%)
-------------sub-option 1.7 (normal-flash 7 times) : tap the switch to select mode group 7 (0.1%, 1%, 10%, 50%, strobe, biking, battery-check, SOS)
-------------sub-option 1.8 (normal-flash 8 times) : tap the switch to select mode group 8(0.1%, 1%, 10%, 50%)
-------------sub-option 1.9 (normal-flash 9 times) : tap the switch to select mode group 9 (50%, 10%, 1%, 0.1%)
-------------sub-option 1.10 (normal-flash 10 times) : tap the switch to select mode group 10 (1%, 10%, 35%, 100%)
-------------sub-option 1.11 (normal-flash 11 times) : tap the switch to select mode group 11 (100%, 20%, strobe)
-------------sub-option 1.12 (normal-flash 12 times) : tap the switch to select mode group 12(100% only)
Option 2 (normal-flash 2 times + buzz-flash): tap the switch to active the mode memory or inactive it,If the user has no operation,flashlight will enter into the last mode.
